Philip Henry Witton

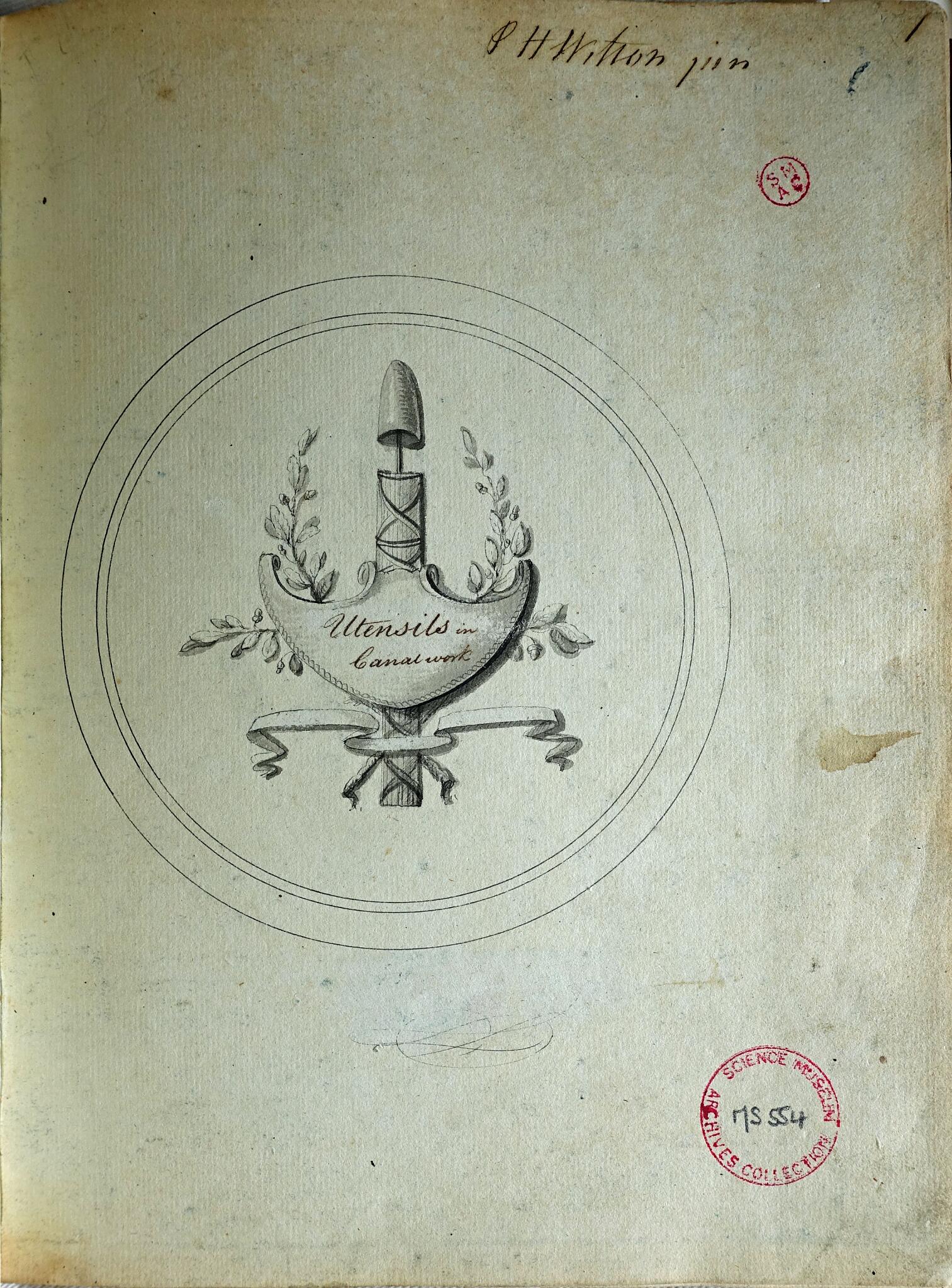

DSC00954 Cover page to Witton's book of drawings "Utensils in Canal Work"
1 Cover page to Witton's book of drawings "Utensils in Canal Work"
DSC00955 Witton's signature on his book of drawings
2 Witton's signature on his book of drawings
DSC00963 A horse drawn gin for removing spoil from a deep cutting. These were used during the excavation of Rowington cutting between 1794 and 1799
3 A horse drawn gin for removing spoil from a deep cutting. These were used during the excavation of Rowington cutting between 1794 and 1799
victorianweb A later drawing (not by Witton) of horse gins in use during the excavation of a cutting like that at Rowington
4 A later drawing (not by Witton) of horse gins in use during the excavation of a cutting like that at Rowington

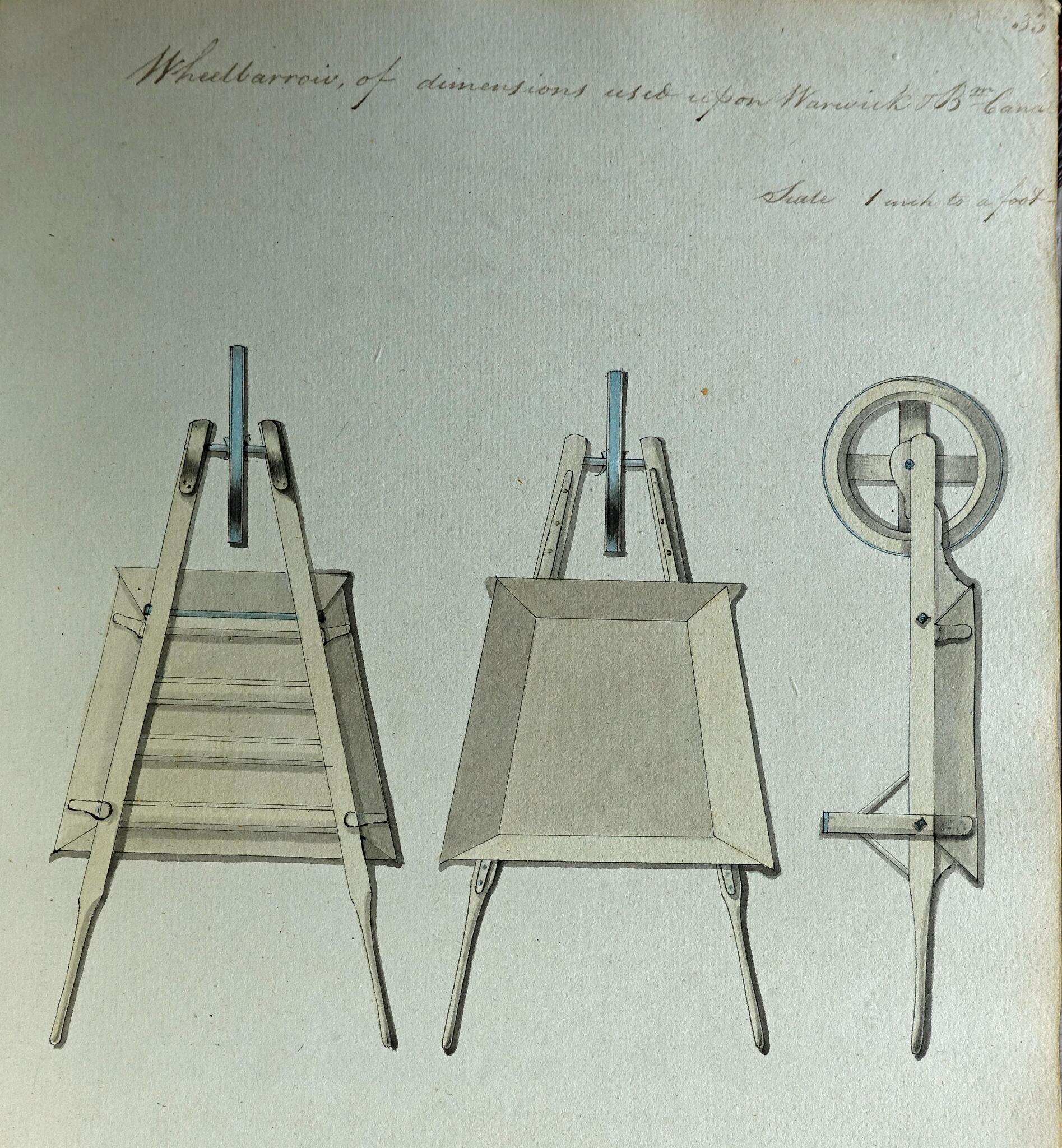

DSC00958 Detailed drawing of a wheelbarrow
5 Detailed drawing of a wheelbarrow
DSC00984 Witton's calculations to cost the production of a wheelbarrow.
6 Witton's calculations to cost the production of a wheelbarrow.
DSC00985 Detail of his rationale for the profit on a wheelbarrow
7 Detail of his rationale for the profit on a wheelbarrow

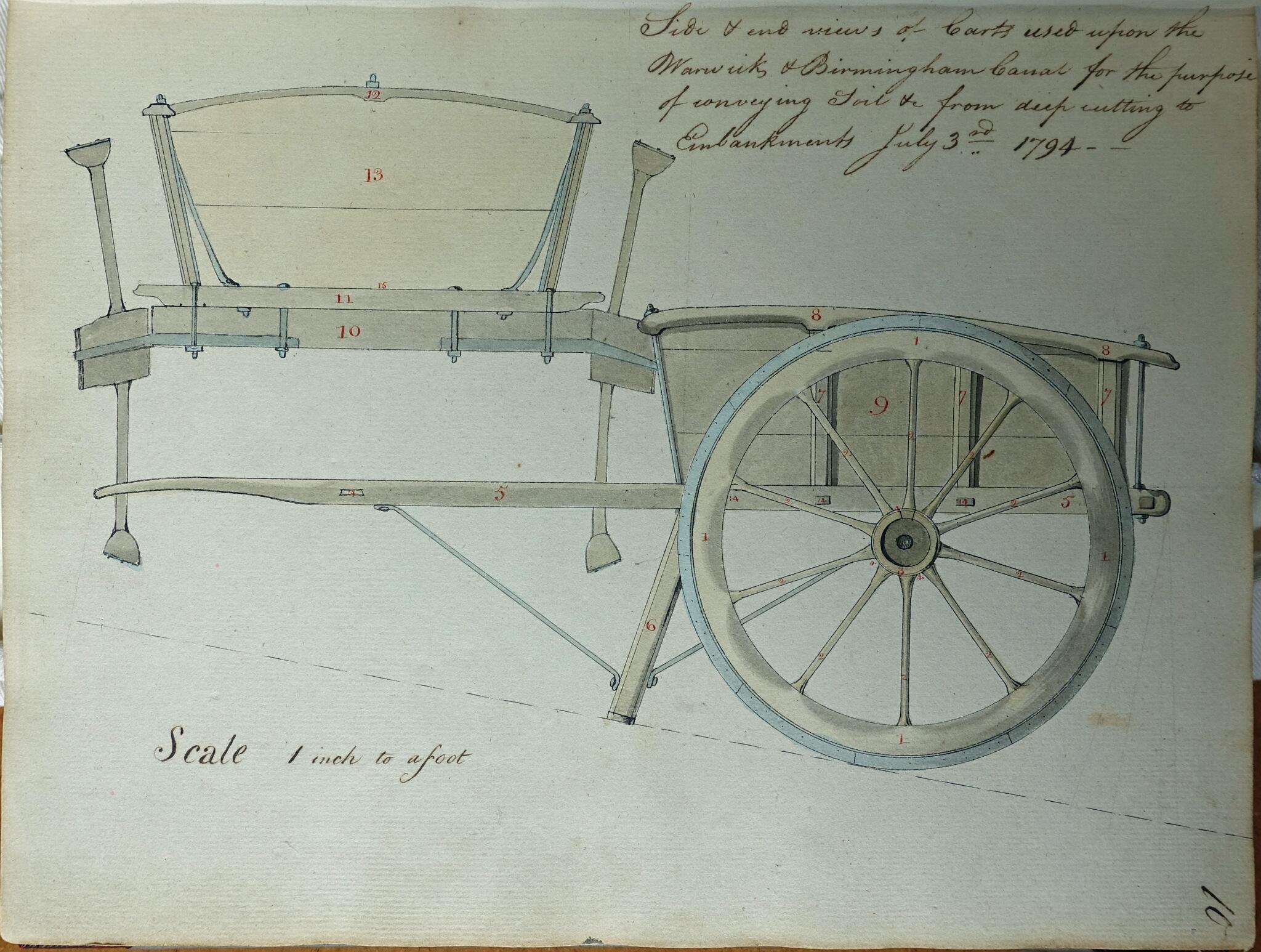

DSC00957 Drawing of a cart as used to transport spoil from Rowington Cutting to the Embankment across the adjacent valley
8 Drawing of a cart as used to transport spoil from Rowington Cutting to the Embankment across the adjacent valley
DSC00970a A hand carriage for moving stone
9 A hand carriage for moving stone

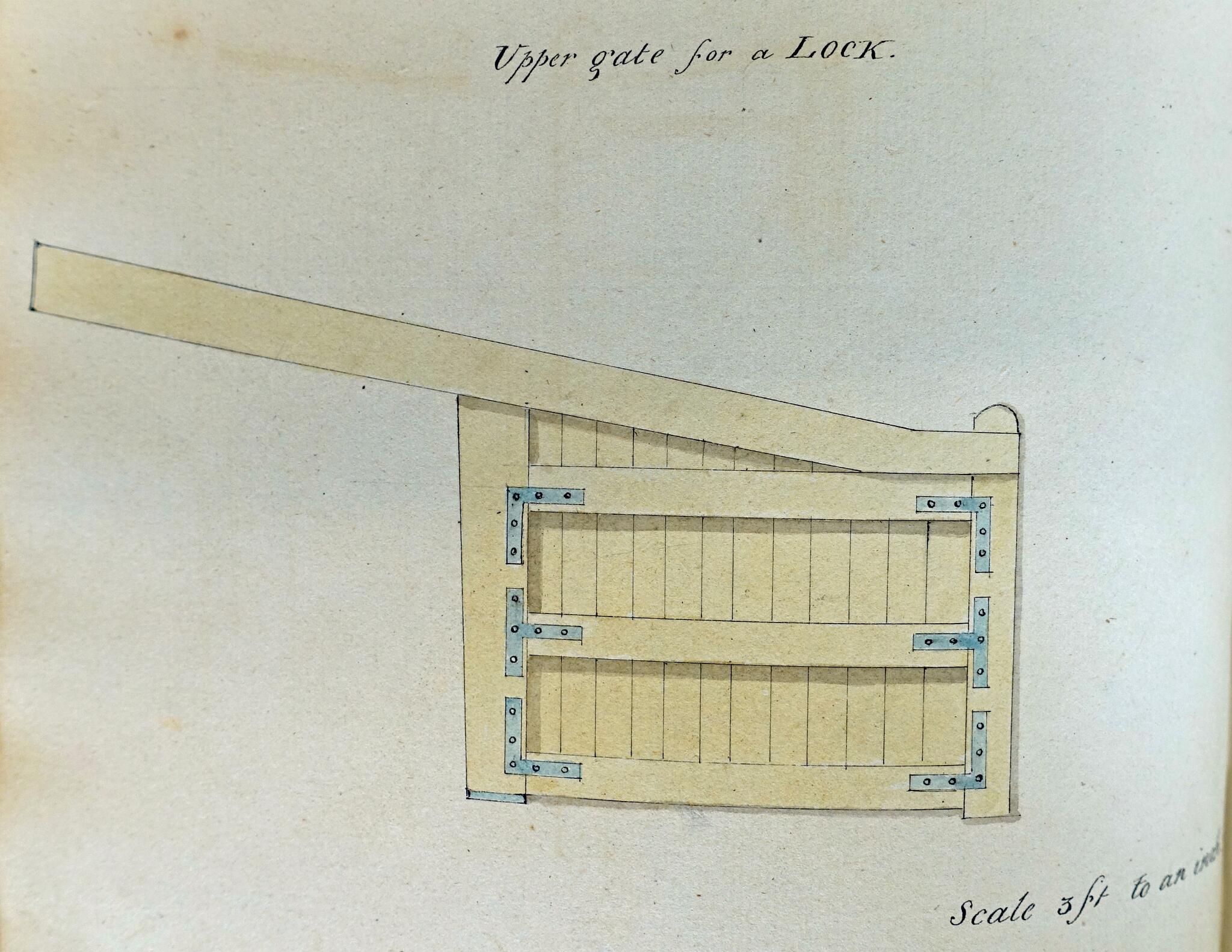

DSC00974 Design for upper lock gate
10 Design for upper lock gate
DSC00973 Design for lower lock gates
11 Design for lower lock gates

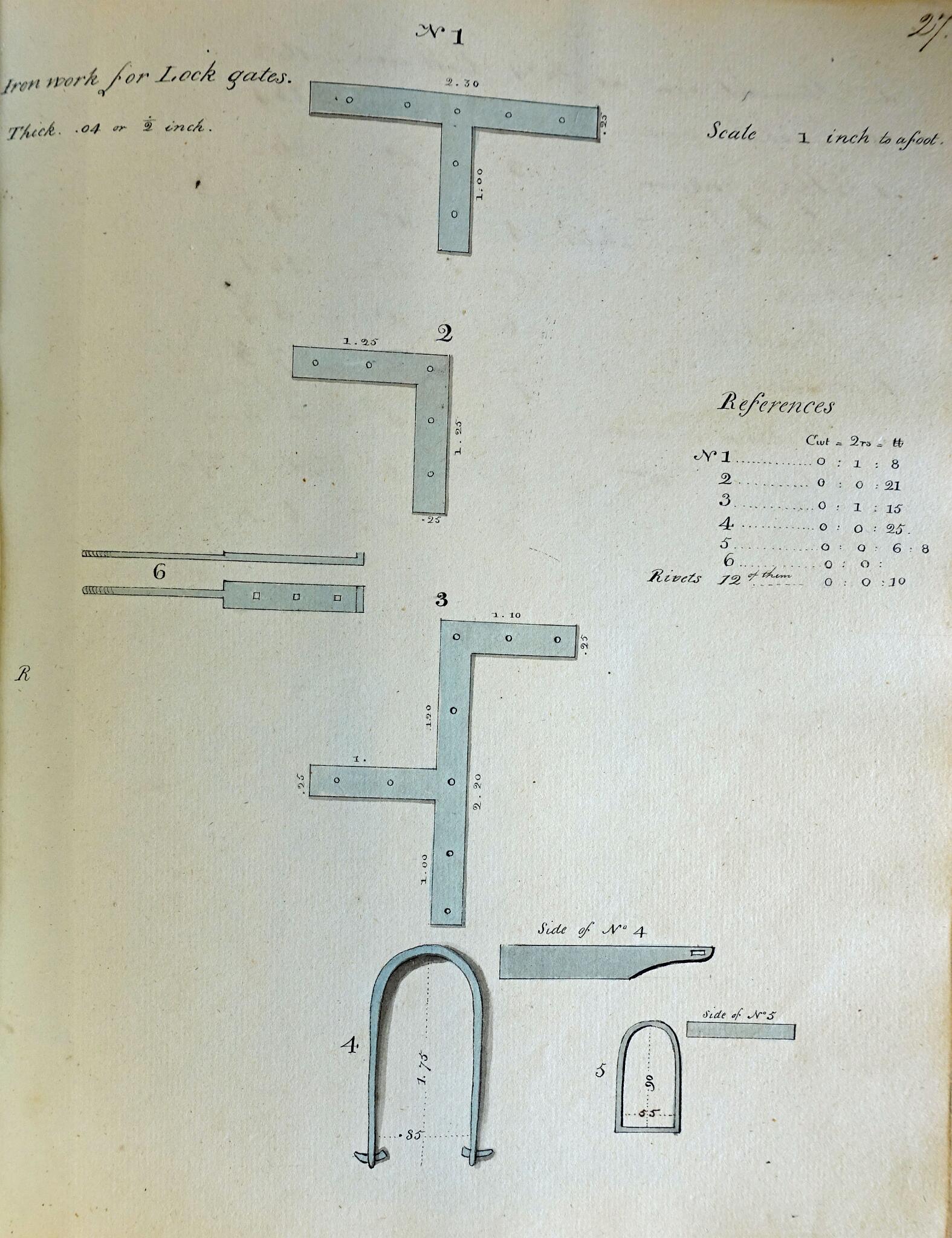

DSC00975 Ironwork for lock gates
12 Ironwork for lock gates
DSC00987
13
DSC00986
14
DSC00982 Lock paddle
15 Lock paddle

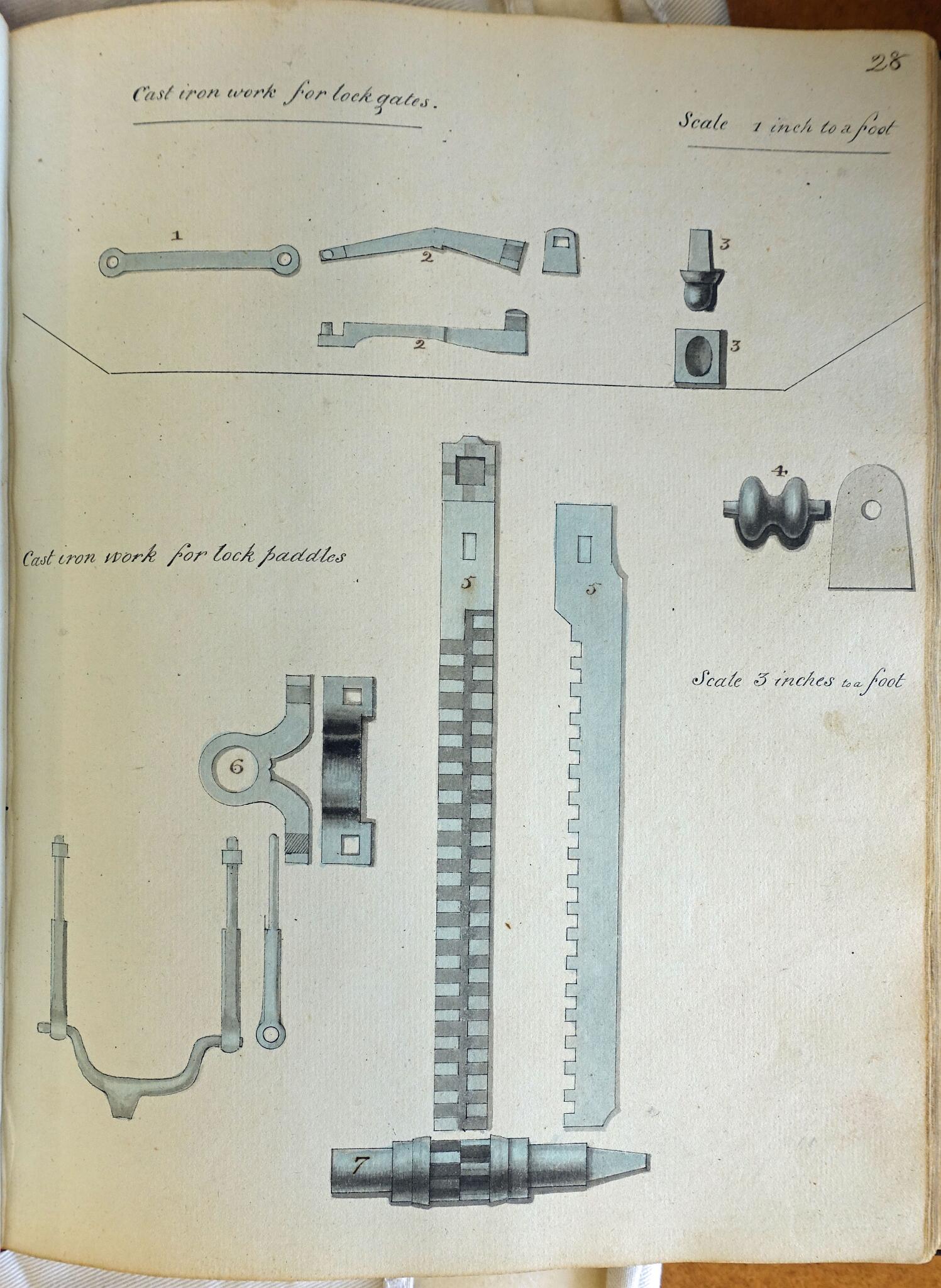

DSC00976 Ironwork for lock paddle
16 Ironwork for lock paddle

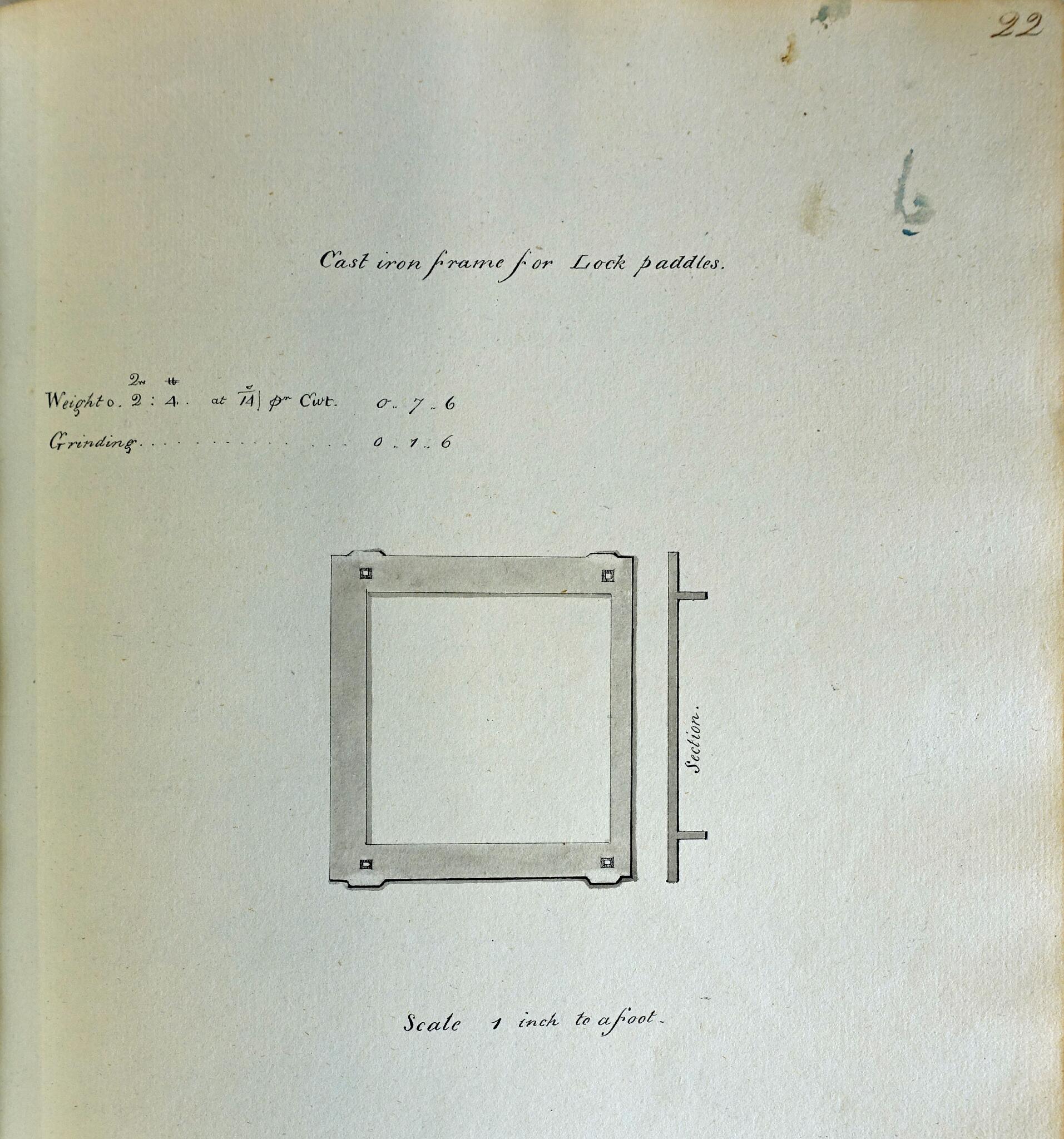

DSC00969 Cast iron frame for lock paddles
17 Cast iron frame for lock paddles
DSC00983 Costings for the lock paddle
18 Costings for the lock paddle

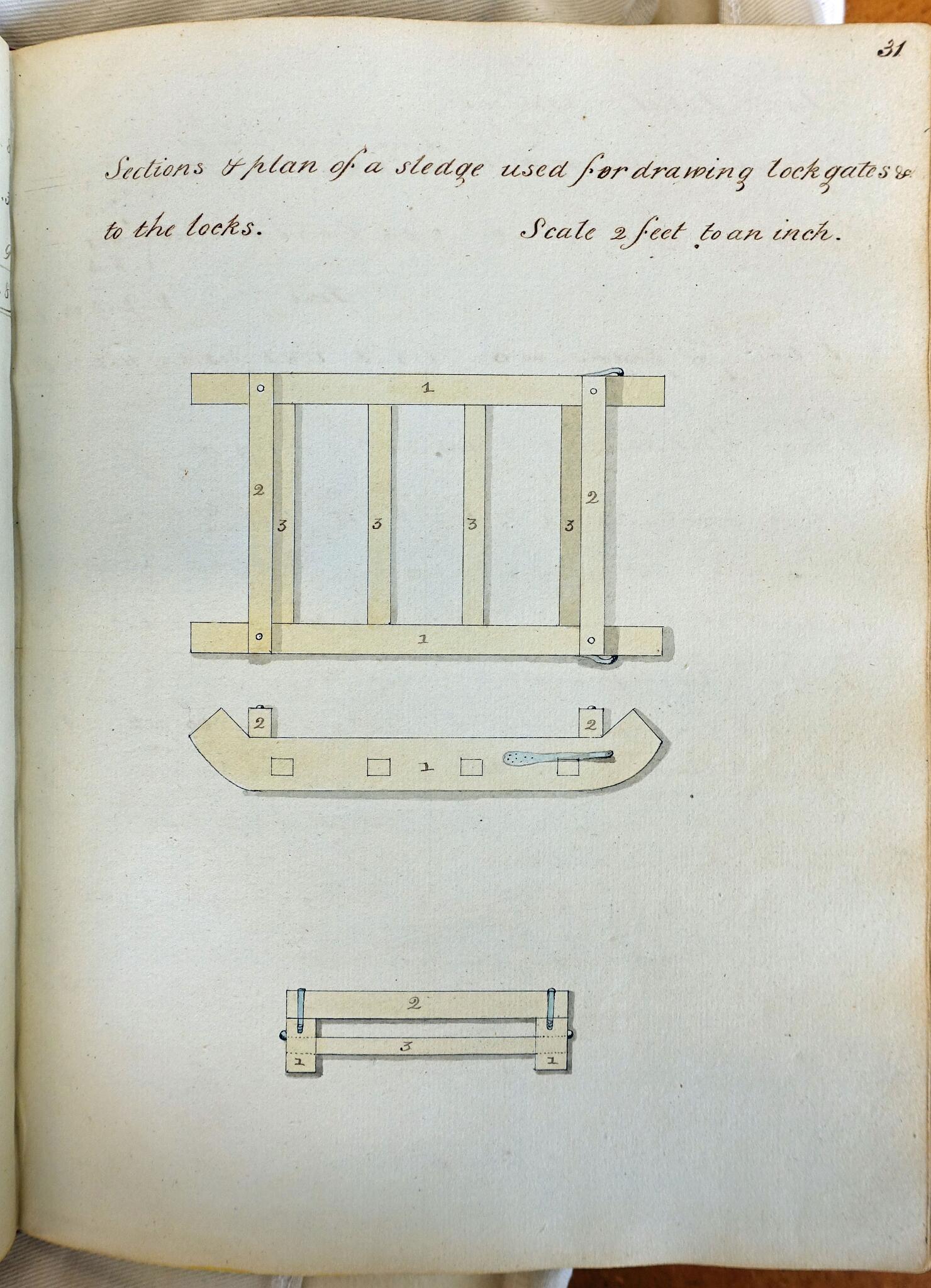

DSC00980 Design for a sledge for carrying lock gates
19 Design for a sledge for carrying lock gates
DSC00981 Costings for the sledge
20 Costings for the sledge
